Advanced packaging: How AI is revolutionizing the game?

High-end performance packages with 2.5D/3D approaches are used today to package AI processors like GPUs, and AI ASICs, as well as HBM. AI server market driving adoption of 2.5D/3D packaging technologies

author-image
DQI Bureau
New Update
AMD Radeon
Listen to this article
0.75x 1x 1.5x
00:00 / 00:00

Data centers and HPC servers are expected to grow gradually in the next years. Both applications are strongly driven by AI. Although the traditional server and networking markets have been weak during 2024, AI servers are growing strongly. Analysts at Yole Group recognize a significant opportunity for the growth and adoption of 2.5D/3D packaging technologies. High-end performance packages with 2.5D/3D approaches are used today to package AI processors like GPUs, and AI ASICs, as well as HBM.

Advertisment

Rayane Mazari, Technology & Cost Analyst, Semiconductor Packaging from Yole Group explains:“There is an increased implementation of high-end systems in high-performance computing, networking, artificial intelligence, autonomous driving, personal computing, and gaming. Therefore, 2.5D & 3D advanced packaging platforms have become critical and effective for increasing device performance and bandwidth.”

The slowing down of scaling methods, along with diversifying demands for high performance and a smaller footprint package, has pushed designers to adopt advanced packaging solutions to achieve high-performance needs. 2.5D & 3D packaging solutions are becoming increasingly complex, and more players have entered the market to enhance their products’ performance.

Escalating demand for enhanced performance with ultra-high routing has been achieved by heterogeneous integration, hence the adoption of 2.5D & 3D packaging technologies.

Advertisment

Nvidia, AMD, and Apple, entered the market with products using innovative packaging solutions, thanks to their collaboration with TSMC. Yole Group decided to investigate and compare them. The new reverse engineering & costing report, 2.5D & 3D Packaging Comparison 2025, investigates three  major components developed by these leading players and especially the 2.5D/3D packaging structure.

* Nvidia H100: This component uses a 2.5D CoWoS platform to stack the 80GB HBM2E (3D package) and the GPU die on the silicon interposer.

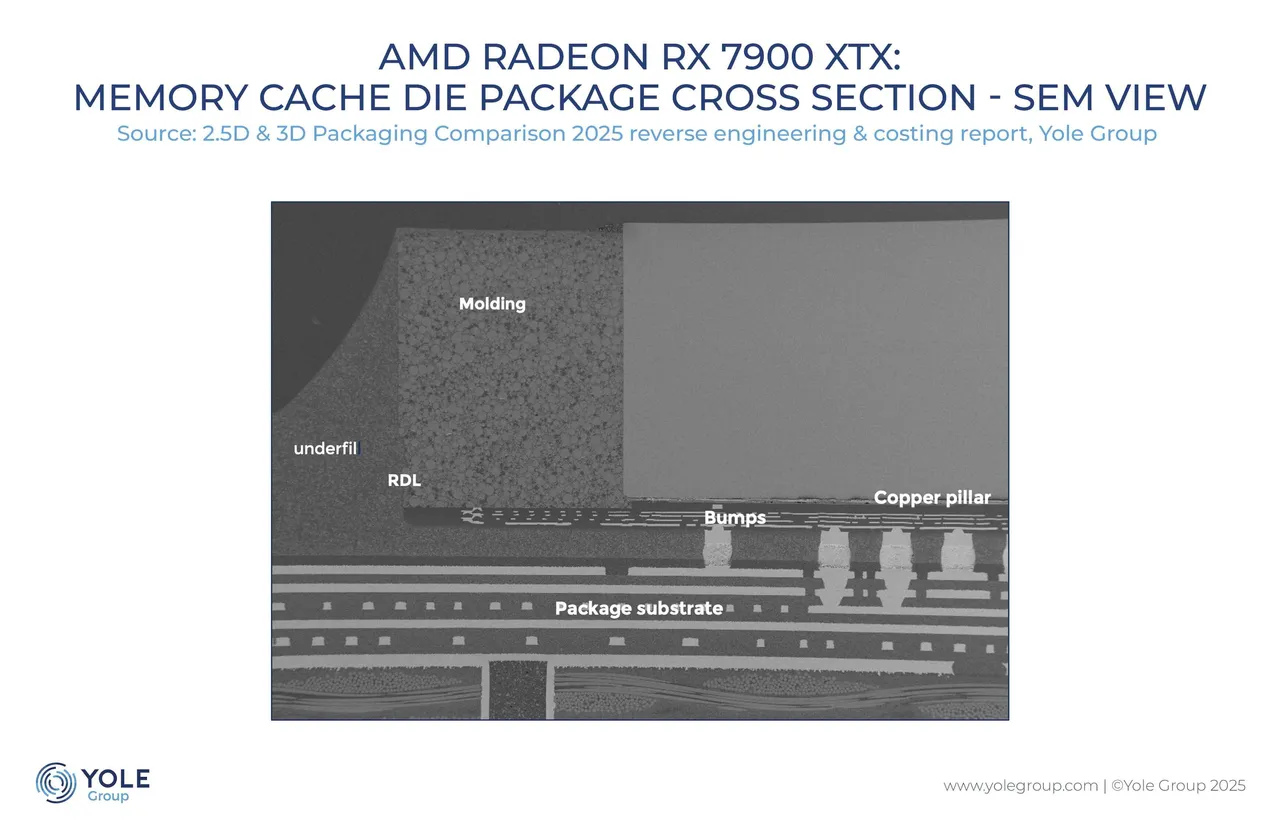

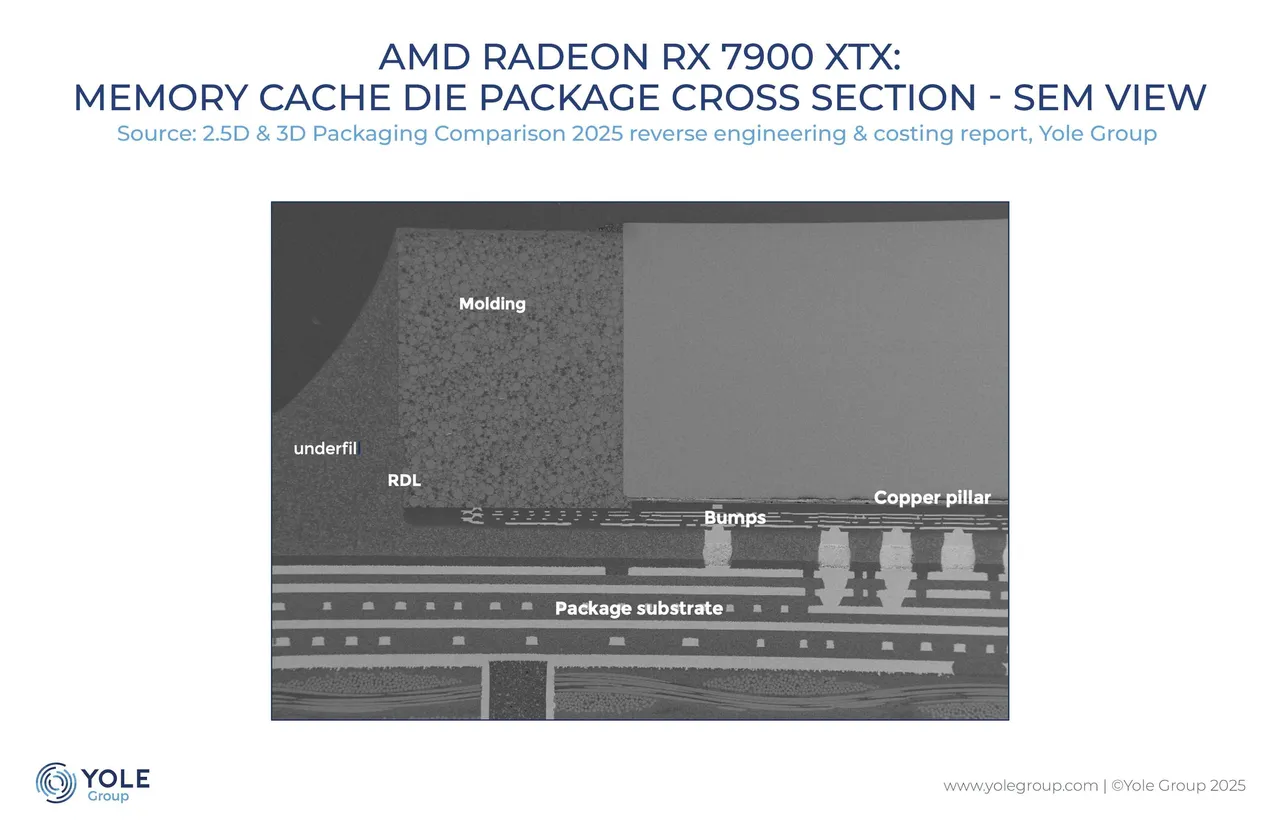

* AMD Radeon RX 7900 XTX: AMD’s solution is based on chiplet integration. The processor and MCDs are connected by an extreme bandwidth Infinity Fabric Fanout interconnect, which enables 5.3 TB/s of bandwidth between the processor and MCDs, leveraging an InFo_OS packaging solution from TSMC.
* Apple M2 Ultra features UltraFusion technology, realized by a chip-first / RDL-last process flow.

“This technical choice leads to the conclusion that the Apple M2 Ultra uses TSMC InFO-LSI to enable two processor dies to communicate by a silicon bridge (LSI),” comments Rayane Mazari.

Advertisment

Stefan Chitoraga, Technology & Market Analyst, Semiconductor Packaging, Yole Group, added: "Advanced packaging increases chip area integration per component. However, integrating more chips into a single package leads to higher component costs."
